Details
1.) 10w 20w 30w 50w 100w disc type permanent magnet generator for vertical axis wind turbine;

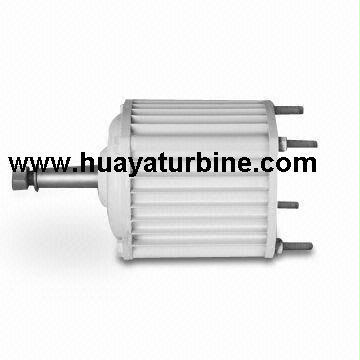

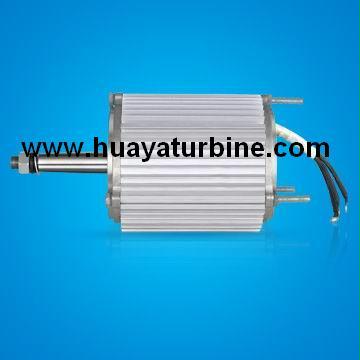

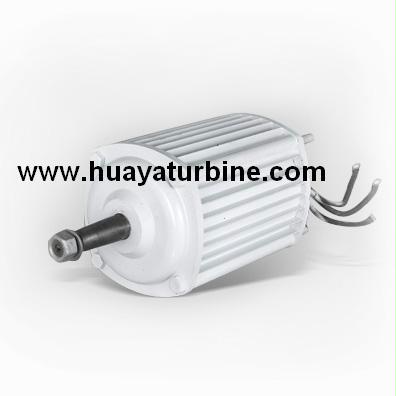

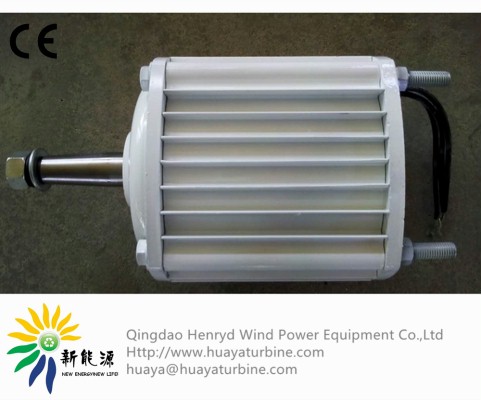

2.) 200w-3kw permanent magnet generator with Aluminum generator case;

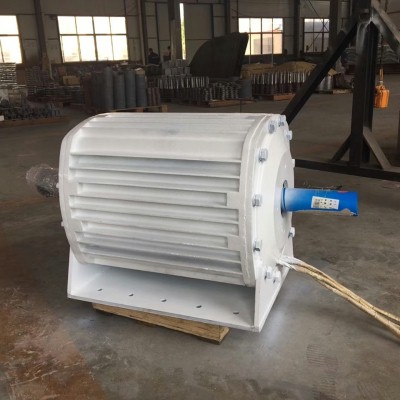

3.) 3kw-50kw permanent magnet generator with iron cast generator case
4.) Disc type permanent magnet generator 10w 20w 30w 50w 100w

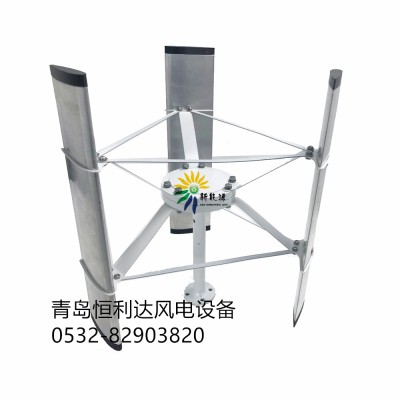

Vertical axis wind turbine use
Material: Nd-Fe-B38 permanent magnet
Star connection
light weight
lower start up torque
compact structure
SKF/NSK bearing
high efficiency, can reach 80-85%.
Working voltage can be special request. We can revise the winding accordingly.
Product Main Features
- Gearless, direct drive, low RPM generator
- Low start up speed due to low cogging and resistive torque design
- High standard, quality components for use in harsh and extreme environments for wind turbines
- High efficiency and Low mechanical resistance energy loss
- Excellent heat dissipation due to the Aluminium alloy outer frame and special internal structure
- High strength from the specially desy selecign structure and fully heat treatment Aluminium
- Generator is designed using speciallted material and treated to resist corrosion and oxidation
- Designed for reliable and long operational lifetime under long-term full output
- Designed for 20-year operation life
- Patent protected design
Further technical details, pls contact with us.
Generator technical data | ||||||
Model | Outside size(LxWxH) | Start up torque | Rated rotation speed | N.W(kg) | Poles pairs Qty | Remark |
300w | 260*160*160 | 0.3 | 550 | 11 | 4 | |
500w | 270*185*185 | 0.4 | 500 | 12.5 | 4 | |
1kw | 315*185*185 | 0.7 | 450 | 17.5 | 4 | |
2kw | 370*185*185 | 1.2 | 420 | 22.5 | 4 | |
2.5KW | 420*185*185 | 1.5 | 380 | 33 | 4 | |
3kw | 560*240*240 | 2.67 | 340 | 62 | 4 | |
5kw | 790*290*290 | 4.5 | 260 | 135 | 10 | W/O brake |
146 | W brake | |||||
10kw | 950*470*470 | 7 | 200 | 318 | 22 | W/O brake |
361 | W brake | |||||
20kw | 1065*470*470 | 12 | 180 | 428 | 22 | W/O brake |
471 | W brake | |||||
30kw | 1065*470*470 | 17 | 160 | 460 | 22 | W/O brake |
490 | W brake |
200w 300w 500w 1kw 1.5kw 2kw 2.5kw 3kw permanent magnet generator
3kw 5kw 10kw 15kw 20kw 30kw 50kw permanent magnet generator
380vac 50hz or 240vac 60hz
